Outdoor IP55 Cabinet


IP Enclosure Ratings & Standards


IP rating is also known as Ingress Protection or International Protection ratings which are defined to the international standard of EN 60529 (British BS EN 60529:1992, European IEC 60509:1989). These standards are used to define the levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies such as dirt and water.


The rating consists of the letters IP followed by 2 digits, the first digit stands for the level of protection that the enclosure provides against solid bodies, the second digit describes the degree of protection of the equipment inside the enclosure against water.


IP65   =  First Digit - Solids

IP65   =  Second Digit - Liquids

IP 55 Racks

Outdoor Racks

As an esteemed company, we are engaged in providing the broad array of IP Rating Outdoor Racks/Cabinet to our valuable clients. These products are available in various specifications, these are used in industrial sectors for various applications. Our offered products are manufactured at the vendors end using best grade approved raw material and latest technology in adherence to universal norms. These products are highly acclaimed in the market for their supreme performance and reliability.

Standard Accessories : Fix Tray, Power Distribution Unit, Fan Housing Unit, Earthing bar, Fluorescent light , DCDB/ACDB

Usability- Telecommunication and Networking equipments, BTS equipments, Traffic Monitoring Equipments, CCTV DVR, Audio Visual Equipments , TV Radio Broadcasting Equipments and other Electrical and power related equipments

Construction : CRCA Steel welded and knock down 1.2 to 1.5 mm thickness, optional single skin and double skin, Equipment Mounting angles 2.0mm thickness with detachable roof canopy, pad mount, heavy duty lifting hook

Static Load Capacity : up to 750- 1000 Kg
Features:

  • Flawless finish
  • Durable finish standards
  • Robust design

Outdoor Rack Cabinet 24U IP55

RACKOM- 22U & 24U Pad Mount (grout) IP55 Outdoor Rack Brand- RAckOm

Usability- Network Switches, Telecom, Surveillance, Network & Surveillance Backup, Fiber Optic

Front Door- lockable steel door with gasket sealing, 4 Fan option for hot air execution

Cable Entry Cut- Through PG 16 IP plastic glands

2 pair heavy duty (1.5mm) vertical mounting rail for equipment mounting

Cooling Option- 4 AC/DC fan Provision mounted on Front Door ( Customization can be done according to Project Need) Load Bearing Capacity up to 200-250 KG
Construction- Welded pre galvanized steel Construction Overall 1.2mm Thick (18 gauge), Load Bearing angles are 1.6 Power Distribution Unit- 6 Socket 5 & 15 AMP Horizontal ( optional)
Cable Management- Horizontal Metal & PVC ( Optional)
Fix Shelf/Cantilever Shelf- 255mm to 600mm (optional)
Color- light Grey Epoxy Powder Coated ( RAL 7035)
Fresh Air Inlet- Through Louvers in Both Side and Filter
Dust Proofing- IP55 Rating Fully Dust Proof all air inlet-outlet with air filters

Water Proofing- IP55 Rating Fully Water Proof Body With Canopy On Top

Product

Part No.

Height

 in  U

Overall Height

Incl. 4” leg & Canopy

Usable Height

OverallWidth with Canopy

Usable Width

Overall Depth

Usable Depth

RSOD022-001

22U

   1225mm                 ( 48.22 Inch)

978 mm        (39 Inch)

750mm

482.6mm

(19 Inch)

600mm

500mm (20.00 in)

RSOD024-001

24U

   1325mm                 ( 52.16 Inch)

1067 mm        (42 Inch)

750mm

482.6mm

(19 Inch)

600mm

500mm (20.00 in)

18U IP55 Outdoor Rack

RAckOm- 20U Free Standing IP55 Outdoor Rack

IP-5(Dust-Solid Particles) | 5(Liquid-Water Oil)

IP55 enclosure provides protection from level of harmful dust and provide protection from low pressure water jet and complete protection from rain water

Usability- Network Switches, Telecom, Surveillance, Network & Surveillance Backup, Fiber management system Front Door- lockable steel door with gasket sealing, 2 & 4 Fan option for hot air execution Cable Entry Cut- Through PG IP Glands
2 pair heavy duty (1.6mm) vertical mounting rail for equipment mounting, Height as per Rack Unit
Cooling Option- 2 AC/DC fan Provision mounted on Front Door
Load Bearing Capacity up to 300 -400 KG
Construction- Welded Galvanized Steel Construction 1.2mm Thick Load Bearing angles are 1.6 mm Power Distribution Unit- 6 Socket 5 & 15 AMP Horizontal (optional)
Cable Management- Horizontal Metal & PVC (Optional)
Fix Shelf/Cantilever Shelf- 375mm & 475mm mm to 600mm (optional)
Color- light Grey Powder Coated (RAL-7035)




Other Features:-

  • Available in Pre Galvanized Steel Anti rust
  • Protection Rating IP55 Compliance Structure Protection from Rain Water or Natural way
  • Protection Rating IP55 Compliance Structure Protection From level of harmful dust
  • Fan Cooled Cabinet through Single Fan, Dual Fan Option
  • Aluminum Wire Mesh Filter 100mm x 200mm which prevent level of harmful dust entering into cabinet
  • Two Year Warranty for Cabinets Which Include FAN & Power Distribution Units
  • Powder Coated with Color Options RAL7035 Light Smoke Grey or RAL9005 Black are the Standard
  • Available in Multiple Depth like 400mm | 500mm | 600mm | 700mm | 800mm | 900mm | 1000mm
  • Single Skin Cabinet ( Double Skin is optional – On Requirement)
  • Fan hood On Front Door with Louvers to eliminate cabinet hot air
  • Fully adjustable 19” mounting Channels, mounting rails can be adjusted as per requirement

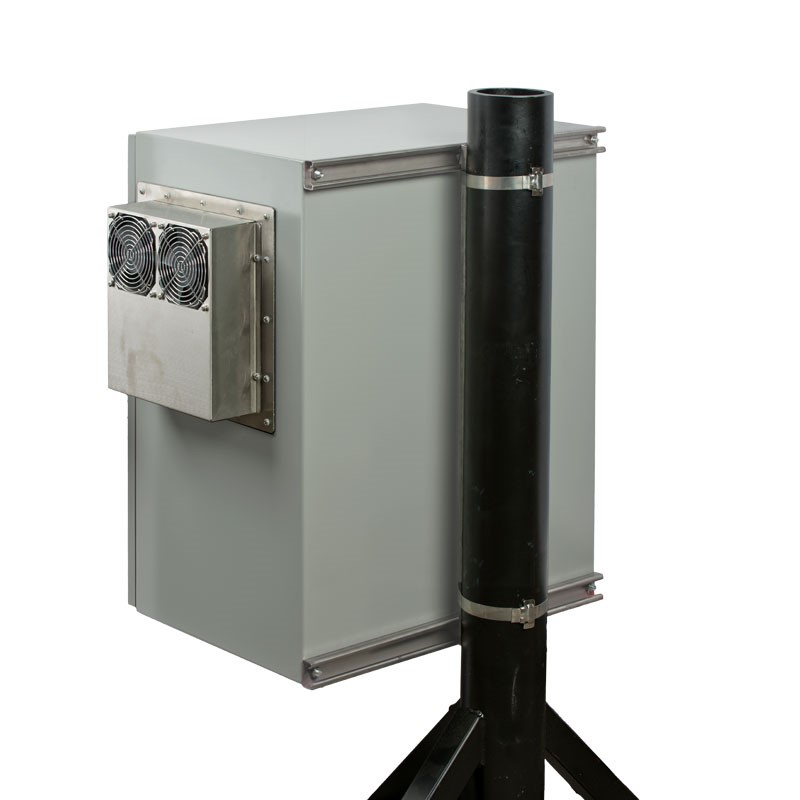

  • Pole Mount, Tower Mount & Wall mount through single arrangement Pole Dia 2 inch to 10 inch
  • Cable Entry through IP PG Glands Options PG 11, PG 16, PG 19, PG 25, PG 29, PG 36

Outdoor Rack 12U IP55

Usability- Network Switches, Telecom, Surveillance, Network & Surveillance Backup, Fiber Optic | Front Door- lockable steel door with gasket sealing, 2 Fan option for hot air execution | Cable Entry Cut- Through PG 16 IP plastic glands | 2 pair heavy duty (1.5mm) vertical mounting rail for equipment mounting | Cooling Option- 2 AC/DC fan Provision mounted on Front Door

Load Bearing Capacity up to 70-90 KG (Pole Mount) | Construction- Welded pre galvanized steel Construction Overall 1.2mm Thick (18 gauge), Load Bearing angles are 1.6

Power Strip- 6 Socket 5 & 15 AMP |Cable Management- | Fix Shelf/Cantilever Shelf- 255mm to 600mm (optional) | Color- light Grey Powder Coated ( RAL 7035) | Fresh Air Inlet- Through Louvers in Both Side and Filter | Dust Proofing- IP55 Rating Fully Dust Proof all air inlet-outlet with air filters |water Proofing- IP55 Rating Fully Water Proof Body With Canopy On Top

Product

Part No.

Height

 in  U

Overall Height

Usable Height

OverallWidth

Usable Width

Overall Depth

Usable Depth

RSOD012-001

12U

    650mm                   ( 25.59 Inch)

533 mm      (21.75 Inch)

575mm

482.6mm

(19 Inch)

400mm

320mm (12.59 in)

RSOD012-002

12U

650mm                   ( 25.59 Inch)

533 mm      (21.75 Inch)

575mm

482.6mm

(19 Inch)

500mm

420mm (16.00 in)

RSOD012-003

12U

    650mm                   ( 25.59 Inch)

533 mm      (21.75 Inch)

575mm

482.6mm

(19 Inch)

600mm

520mm (20.00 in)

Outdoor Rack 15U

RACKOM- 15U Pad Mount (grout) IP55 Outdoor Rack Brand- RAckOm

Usability- Network Switches, Telecom, Surveillance, Network Surveillance Backup, Fiber Optic
Front Door- lockable steel door with gasket sealing, 2 Fan option for hot air execution
Cable Entry Cut- Through PG 16 IP plastic glands
2 pair heavy duty (1.5mm) vertical mounting rail for equipment mounting
Cooling Option- 2 AC/DC fan Provision mounted on Front Door ( Customization can be done according to Project Need) Load Bearing Capacity up to 300 -350 KG
Construction- Welded pre galvanized steel Construction Overall 1.2mm Thick (18 gauge), Load Bearing angles are 1.6
Power Distribution Unit- 6 Socket 5 15 AMP Horizontal ( optional)
Cable Management- Horizontal Metal PVC ( Optional)
Fix Shelf/Cantilever Shelf- 255mm to 600mm (optional)
Color- light Grey Powder Coated ( RAL 7035)
Fresh Air Inlet- Through Louvers in Both Side and Filter
Dust Proofing- IP55 Rating Fully Dust Proof all air inlet-outlet with air filters
water Proofing- IP55 Rating Fully Water Proof Body With Canopy On Top
